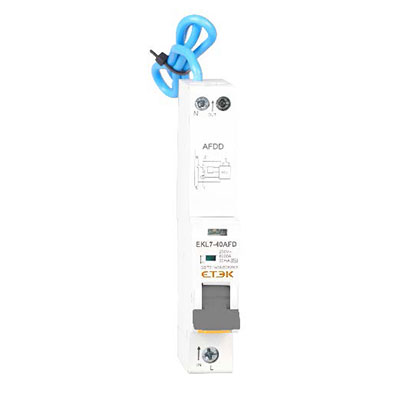

Protection
① Arc Fault Protction
② Overload Protection
③ Short-Circuit Protection
④ Earth-Leakage Protection
Technical Data
Electrical Features
|
Mode |
Electronic |
|
Type |
A |
|
Rated current In |
6,8,10,13,16,20,25,32,40A |
|
Poles |
1P+N |
|
Rated voltage Ue |
230/240V~ |
|
Insulation voltage Ui |
500V |
|
Rated frequency |
50/60Hz |
|
Rated residual operating current(I△n) |
10,30,100,300mA |
|
Break time under |
≤0.1s |
|
Rated breaking capacity |
6,000A |
|
Energy limiting class |
3 |
|
Rated impulse withstand voltage(1.5/50) Uimp |
4,000V |
|
Dielectric test voltage at ind.Freq. for 1min |
2kV |
|
Pollution degree |
2 |
|
Thermo-magnetic release characteristic |
B,C |

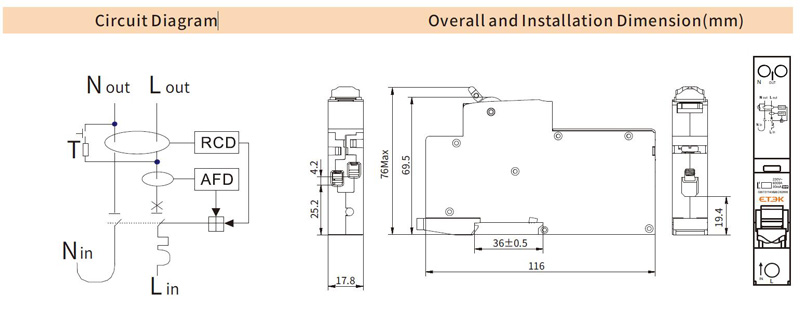

Installation
|
Terminal connection type |
Cable/Pin-type busbar |
|
Terminal size top/bottom for cable |
25mm2 18-3AWG |
|
Terminal size top/bottom for busbar |
25mm2 18-3AWG |
|
Tightening torque |
2.5Nm 22In-lbs |
|
Mounting |
On DIN rail EN60715(35mm) by means of fast clip device |
|
Connection |
Power supply from button |
Mechanical Features
|
Electrical life |
4,000 Cycles |
|
Mechanical life |
10,000 Cycles |
|
Contact position indicator |
Yes |
|
Protection degree |
IP20 |
|
Reference temperature for setting of thermal element |
30℃ |
|
Ambient temperature (with daily average≤35℃) |
-5℃~+40℃ |
|
Storage temperature |
-25℃~+70℃ |
Characteristics
Tripping Current Range
|
Type |
Tripping current I△/A |
||
|
A |
Lagging Angle |
I△n>0.01A |
I△n≤0.01A |
|
0° |
0.35I△n≤I△≤1.4I△n |
0.35I△n≤I△≤2I△n |
|
|
90° |
0.25I△n≤I△≤1.4I△n |
0.25I△n≤I△≤2I△n |
|
|
135° |
0.11I△n≤I△≤1.4I△n |
0.11I△n≤I△≤2I△n |
|

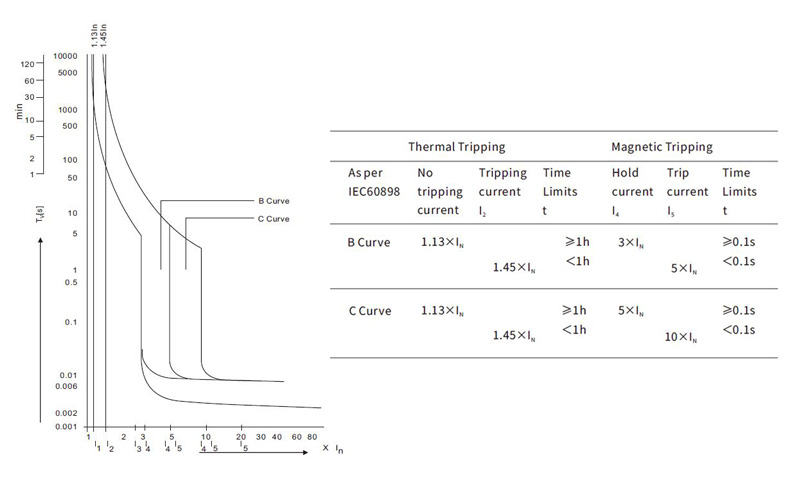

Characteristics Curves
