S2 series Electromagnetic type 6KA RCBO EKL8-40M

Related products

S1 series Electromagnetic type 6KA  RCBO EKL5-63

S1 series Electromagnetic type 6KA RCBO EKL5-63

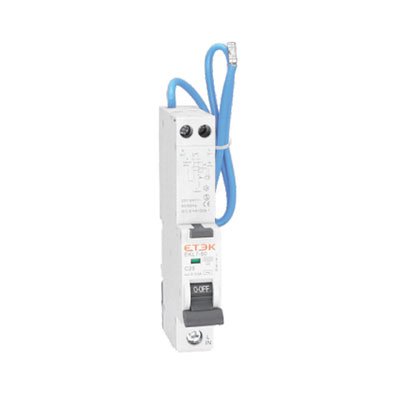

S2 series Electronic type 6KA&10KA RCBO EKL7-50

S2 series Electronic type 6KA&10KA RCBO EKL7-50

S2 series 18mm Electronic type 6KA RCBO EKL9-40

S2 series 18mm Electronic type 6KA RCBO EKL9-40

EKL7-40AFD 6KA RCBO+AFDD

EKL7-40AFD 6KA RCBO+AFDD

> S2 series Electromagnetic type 6KA RCBO EKL8-40M

S2 series Electromagnetic type 6KA RCBO EKL8-40M

Categories: Circuit Breakers

MOQ:1

Brand: ETEK

FOB Port: Ningbo, Zhejiang

Terms of Payment: Western Union,T/T Paypal

Delivery Time: 15 Wording Days

Product Description

Technical Data



Electrical Features



Mode Electromagnetic
Type AC,A
Rated current In 6,8,10,13,16,20,25,32,40A
Poles 1P+N
Rated voltage Ue 230/240V~
Insulation voltage Ui 500V
Rated frequency 50/60Hz
Rated residual operating current(I△n) 30,100,300mA
Break time under I△n ≤0.1s
Rated breaking capacity 6,000A
Energy limiting class 3
Rated impulse withstand voltage(1.5/50) Uimp 4,000V
Dielectric test voltage at ind.Freq. for 1min 2kV
Pollution degree 2
Thermo-magnetic release characteristic B,C





Installation



Terminal connection type Cable/Pin-type busbar/U-type busbar
Terminal size top/bottom for cable 25mm2 18-3AWG
Terminal size top/bottom for busbar 25mm2 18-3AWG
Tightening torque 2.5Nm 22In-lbs
Mounting On DIN rail EN60715(35mm) by means of fast clip device
Connection Power supply in both directions





Mechanical Features



Electrical life 4,000 Cycles
Mechanical life 10,000 Cycles
Contact position indicator Yes
Protection degree IP20
Reference temperature for setting of thermal element 30℃
Ambient temperature (with daily average≤35℃) -5℃~+40℃
Storage temperature -25℃~+70℃





Tripping Current Range



Type Tripping current I△/A
AC 0.5I△n<I△<I△n
A I△n>0.01A I△n≤0.01A
0.35I△n≤I△≤1.4I△n 0.35I△n≤I△≤2I△n
0.25I△n≤I△≤1.4I△n 0.25I△n≤I△≤2I△n
0.11I△n≤I△≤1.4I△n 0.11I△n≤I△≤2I△n





Combination with accessories



Auxiliary contact EKM2-OF
Alarm contact EKM2-FB
Shunt release EKM2-MX

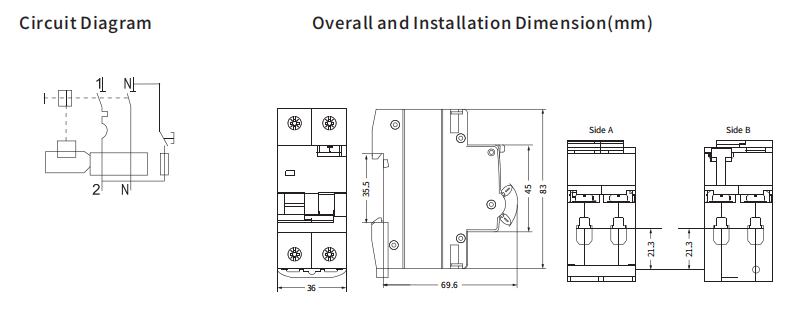

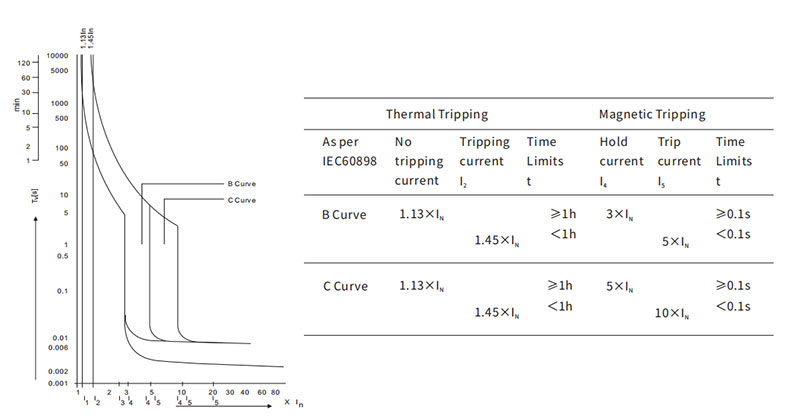

Characteristics Curves
