S1 series Electromagnetic Type B 10KA RCCB EKL1-63B

Residual Current Devices – RCCB

Ultimate protection of people and equipment

RCCB Electrical Features

Mode	Electromagnetic
Type(wave form of the earth leakage sensed)	B
Rated current In	25,40,63A
Poles	2P(1P+N),4P(3P+N)
Rated voltage Ue	2P 240V~,4P 415V~
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated residual operation current(I△n)	30mA
Rated residual making and breaking capacity (I△m)	500A(In≤40A), 10In(In＞40A)
Short-circuit current Inc= I△c	10,000A
SCPD fuse
Break time under I△n	≤0.1s
Rated impulse withstand voltage(1.5/50) Uimp	4000V
Dielectric test voltage at ind.Freq. for 1min	2.5kV
Electrical life	2,000 Cycles
Mechanical life	4,000 Cycles

RCCB Tripping Current Range

Detectable wave form	Pulsating direct current sensitive	Surge current proof
B class Tripping is ensured for sinusoidal AC residual currents pulsed DC residual currents,alternating residual sinusoidal currents up to 1000Hz,pulsating direct residual currents and for smooth direct residual currents,whether applied suddenly or increasing slowly.	They react to AC and pulsating DC fault current which reach 0 or almost 0 within one time period of the mains frequency.	RCCB’s surge capacity. Not tripping at standardized 8/20 υs surge-current waves acc.to VDE 0432 Part 2 with surge current values of up to 250A.

RCCB Installation

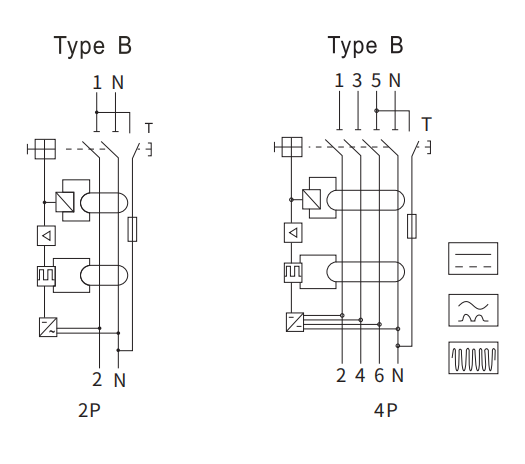

Circuit Diagram

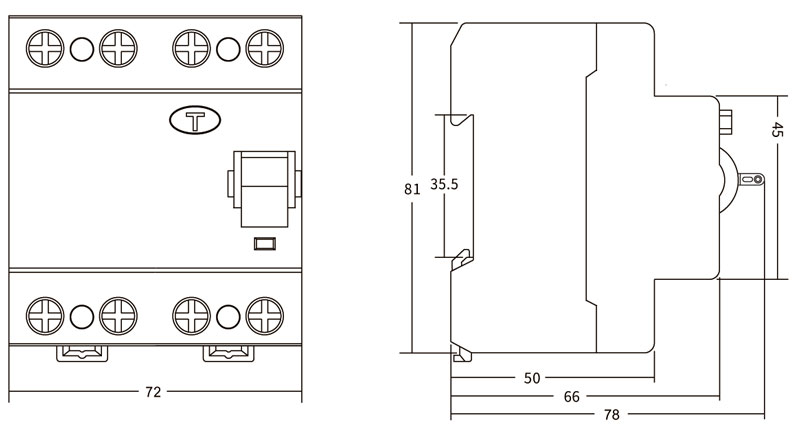

Overall and Installation Dimension(mm)

The Residual Current Circuit breaker RCCBs are the safest device to detect and trip against electrical leakage currents, thus ensuring protection against electric shock caused by indirect contacts. These devices must be used in series with an MCB or fuse which protects them from the potentially damaging thermal and dynamic stresses of any over currents. They also act as the main disconnecting switches upstream of any derived MCBs (e.g. domestic consumer unit). Electricians will install an RCBO (Residual Current Breaker with Overcurrent) where there is a need to prevent overload on a particular circuit at the same time as preventing anyone getting a shock, An RCBO also works as an MCB (Minature or Mains Circuit Breaker).
