Categories: Circuit Breakers
MOQ:1
Brand: ETEK
FOB Port: Ningbo, Zhejiang
Terms of Payment: Western Union,T/T Paypal
Delivery Time: 15 Wording Days
Categories: Circuit Breakers
MOQ:1
Brand: ETEK
FOB Port: Ningbo, Zhejiang
Terms of Payment: Western Union,T/T Paypal
Delivery Time: 15 Wording Days
Electrical Features
| Mode | Electronic |
| Type | AC,A |
| Rated current In | 6,8,10,13,16,20,25,32,40A |
| Poles | 1P+N |
| Rated voltage Ue | 230/240V~ |
| Insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated residual operating current(I△n) | 10,30,100,300mA |
| Break time under I△n | ≤0.1s |
| Rated breaking capacity | 6,000A |
| Energy limiting class | 3 |
| Rated impulse withstand voltage(1.5/50) Uimp | 4,000V |
| Dielectric test voltage at ind.Freq. for 1min | 2kV |
| Pollution degree | 2 |
| Thermo-magnetic release characteristic | B,C |

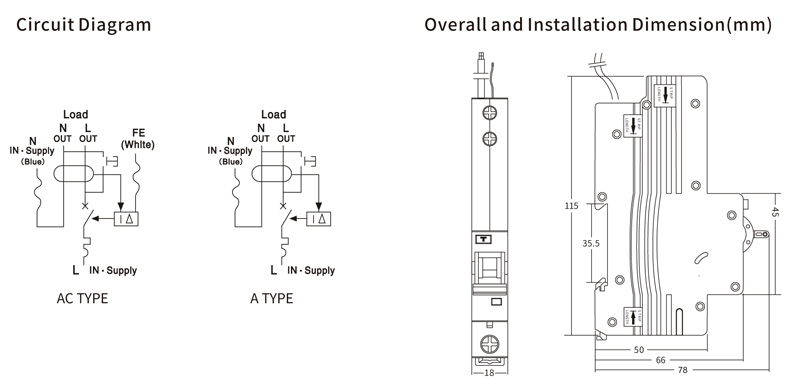

Installation
| Terminal connection type | Cable/Pin-type busbar/U-type busbar |
| Terminal size top/bottom for cable | 25mm2 18-3AWG |
| Terminal size top/bottom for busbar | 25mm2 18-3AWG |
| Tightening torque | 2.5Nm 22In-lbs |
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device |
| Connection | Power supply from button |
Mechanical Features
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Reference temperature for setting of thermal element | 30℃ |
| Ambient temperature (with daily average≤35℃) | -5℃~+40℃ |
| Storage temperature | -25℃~+70℃ |
Specialfunction can customized
| Over voltage protection | Yes |
| Under voltage protection | Yes |
| Over/Under voltage protection | Yes |
Tripping Current Range
| Type | Tripping current I△/A | ||
| AC | 0.5I△n | ||
| A | Lagging Angle | I△n>0.01A | I△n≤0.01A |
| 0° | 0.35I△n≤I△≤1.4I△n | 0.35I△n≤I△≤2I△n | |
| 90° | 0.25I△n≤I△≤1.4I△n | 0.25I△n≤I△≤2I△n | |
| 135° | 0.11I△n≤I△≤1.4I△n | 0.11I△n≤I△≤2I△n | |
Characteristics Curves
